Blackmagic PYXIS 12K review: The box that loves detail

The Blackmagic PYXIS 12K is a small, rig-ready box that shoots big: 12K resolution, high dynamic range, honest color, pro I/O and a workflow that moves fast. It skips some comforts, like internal ND and basic autofocus (AF), but pays back with files that bend without breaking and a body built for crews who like to build.

Take a modern 12K sensor and drop it into a compact, rig-friendly body. Add the ports crews rely on and the menus editors actually like to use. That’s the PYXIS 12K. It shoots big, packs small and is built to work.

Let’s take a closer look at what it has to offer shooters and if it’s worth your hard-earned dollar.

The sensor

With a 3:2 full frame sensor that’s capable of 12K open gate video, resolution is not a party trick here. 12K buys you tons of room to reframe your shots as well as composite, pull clean keys, stabilize and downsample into 8K and 4K all without cropping the sensor. In our experience in the editing room, we were able to push the files quote a lot. Skin tones stayed skin tones and highlights stayed highlights. For pros, this kind of forgiveness in post-production shouldn’t be underestimated. It could quite literally save them from reshoots.

Yes, the sensor is the same lineage used in the company’s URSA Cine 12K LF flagship cinema camera. You see it in the color response, the dynamic range, and the texture of the image. From the first clip, the footage looks refined and intentional. You can deliver a high-end look straight out of the box without heavy tweaking.

What you get

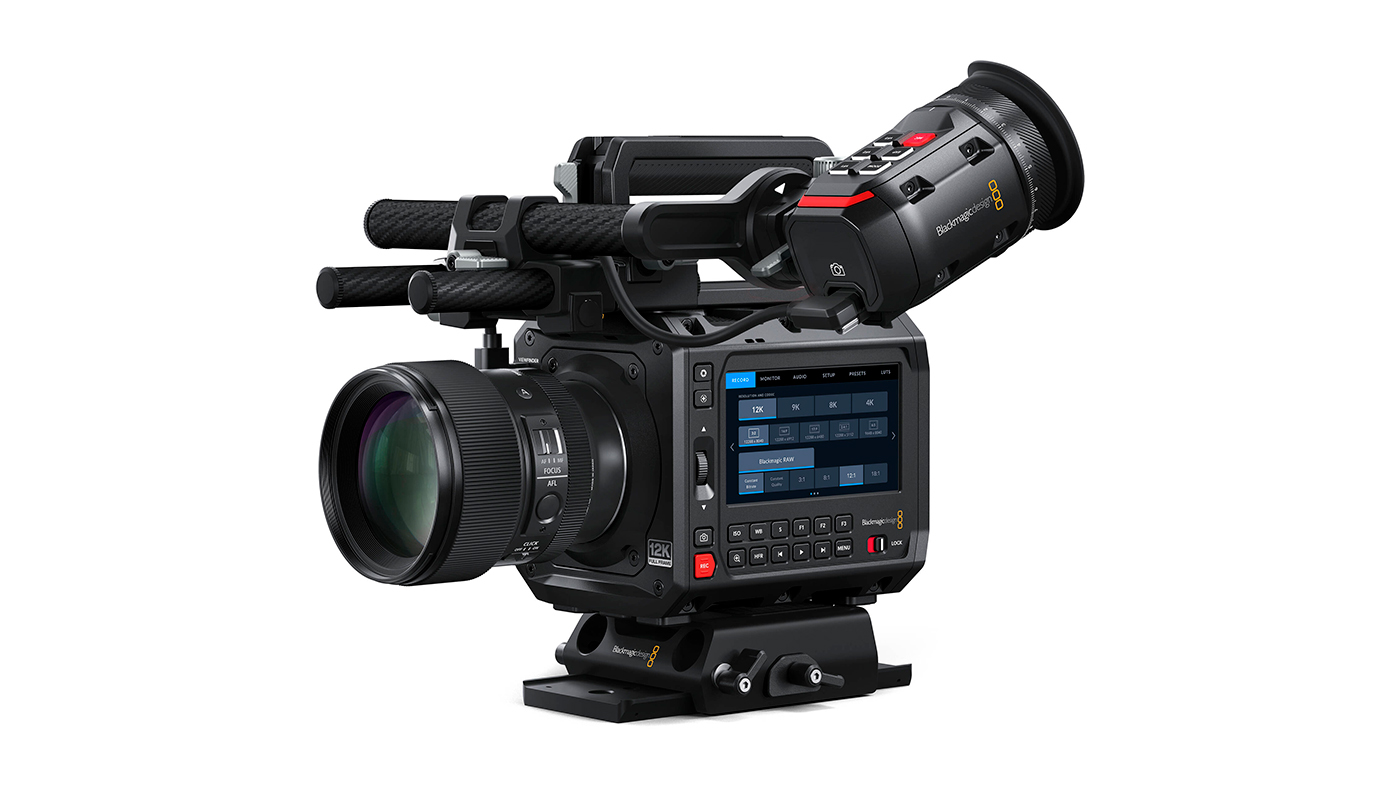

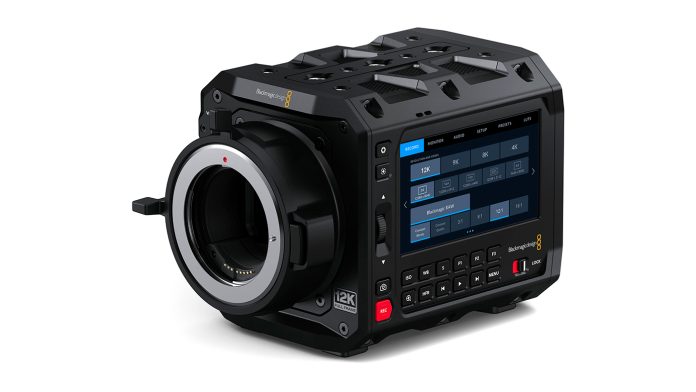

The PYXIS 12K ships as a compact, box camera with a fixed mount available in L, EF and PL. Mounting points line the sides and top, so rigging is simple. The rear panel gives you proper I/O (SDI for monitoring, timecode for sync, audio inputs and 10G Ethernet for fast offloads and remote control). Up front, a four-inch, bright HDR touchscreen handles menus and monitoring. It does not flip. That’s by design. So, when the rig gets busy, use an external monitor placed where it makes sense and keep the camera body uncluttered.

For powering the camera, the options are flexible. The Sony style BP-U batteries come in a wide swath of sizes or it can take DC in via third-party V-mount and Gold-mount solutions as battery plates on rods or adapters that lock to the body. If your cart already runs on a standard, you can be at home on day one.

Two CFexpress Type B slots handle the heavy lifting. You can also record to a USB-C SSD. This matters in 12K. Data adds up. Having options like this keeps the set moving. Plus, SSDs are still cheaper per GB than CFexpress.

The picture

This sensor is large-format, full-frame CMOS sensor that’s packed with RGB-W photosites. And we’re happy that the 12K resolution spec is not a spec stunt. It does deliver clean textures while also keeping skin tones honest. Highlight roll-off is also smooth. Additionally, noise is tight and well-mannered while motion when shooting with the camera feels natural.

During our time with the camera, we saw no line skipping or pixel binning in the common modes. The camera scales in-sensor. That preserves field of view, keeps aliasing tame and gives you the look you expect from the glass you chose. Open Gate 12K gives you room to breathe.

The mount that multiplies

L-mount is a smart choice for a box like this. It gives you a deep native catalog plus a short flange distance for adapters. Go light with modern primes. Go heavy with cinema zooms. Dust off a vintage favorite. Electronic iris and, when supported, focus control are there. It’s a platform you can grow with.

Focus, straight up

Autofocus here is basic. It’s push-to-focus: press the AF button, or touch the screen where you want the focus to lock to, it locks and that’s the end of it. There’s no continuous, subject-tracking autofocus (AF) like you’d find on a stills-first body. Treat this as a manual-focus camera and you’ll be happier.

Focus peaking is clear. Magnification is quick. The box shape takes a follow-focus well, and the weight balances cleanly on rails.

Sound and sync

The audio path is solid, but mini-XLR port can slow you down and usually means carrying adapters. There’s also a 3.5 mm input for mics or wireless audio receivers, an on-board stereo mic for scratch track or ambient sound recording and headphones plug straight into the body. The preamps are clean, and the meters are easy to read. Because time matters as much as tone, timecode and reference inputs use BNC.

Workflow that keeps up

This camera records Blackmagic RAW and generates 1080p H.264 proxies at the same time. This means editors can start cutting while the cart offloads the masters, while producers can review takes right away and assistants can tag, log and assemble without waiting. When it’s time to conform, the proxies relink clean.

DaVinci Resolve Studio comes with the camera, which saves you about $300. It also keeps color management, stabilization, noise reduction and B-RAW controls under one roof. The workflow is direct: set your project, pick your B-RAW quality, choose whether you want proxies and roll. You can browse the camera, pull clips and push them to storage without opening a single door.

The catches (spun the right way)

No internal ND

This will be a sticking point for some. For working crews, it’s muscle memory. You already own front-of-lens NDs, a matte box or a drop-in variable ND with your favorite adapters. External ND also keeps the optical path inside the body simple. That helps with service, heat and cost. It means you’ll need to bring an extra piece of gear, but the added hassle is minor and doesn’t outweigh the camera’s overall strengths.

Fixed, non-articulating screen

A flip screen can be useful, but it often gets in the way once a rig comes together. The built-in 4-inch HDR panel is bright, responsive, and works well as a clean reference when the camera is bare. Once you rig up, you’ll use an external monitor where it makes sense, on the operator side, on top for a gimbal or out front for a client.

One SDI, No HDMI

Some will want redundancy. In practice, a single SDI keeps things reliable and professional. If you need to feed multiple monitors, a small SDI DA does the job while keeping the signal path clean. It’s how most sets wire a signal chain anyway.

Active cooling with a voice

In quiet rooms, you’ll hear the camera’s fans if the camera sits close to a mic. But this can be fix. The fix is simple craft. Get the body off the table, use soft mounts, move the mic and roll room tone. In return, you get long, stable takes and a camera that won’t cook itself on a hot day.

Data appetite

12K eats storage. There’s no magic here. The upside is real: sharper downsampled images, plenty of room to reframe, cleaner keys and less stress in post-production. Plan media the way you plan lenses. Buy more than you think you need. Label everything. Rotate cards like clockwork. It’s the tax you pay for the look.

One mini-XLR

Two would have been nice. Many shoots already run a mixer, a wireless receiver or a dual-channel preamp at the camera and dual-system sound is common. The single port you get supports phantom power and delivers clean audio. So, thankfully, it does its job well and gets the job done.

Performance

On the Blackmagic PYXIS 12K, menus are fast and clearly labeled. You can set up a shoot in minutes by dialing in project rate, resolution, Blackmagic RAW compression level, proxies and LUTs, then get rolling. The operating system is built for shooters who don’t want to dig through pages. A handful of function buttons let you assign tools you use most, like false color, peaking and high frame rate, so muscle memory does the work.

Balance is just as straightforward. The box-style body sits centered on gimbals and sliders and behaves well on a shoulder rig. With a small battery on the back, the weight feels right. It takes a top handle, side grip and follow focus without feeling overloaded.

In post-production

This is where the Blackmagic PYXIS 12K earns its keep. B-RAW grades with grace. You get robust control over debayering, highlight recovery, noise reduction and color management. The images are pliable yet stable under heavy correction. Downsampled 8K and 4K look better than “native” from smaller sensors. Fine edges hold. Skin keeps its texture without going plastic. Heavy comps hold together because there’s signal to spare.

The proxy workflow just works. Editors can cut quickly on lightweight files, color can dial in a look early and the whole team keeps moving without friction. When it’s time to finish, you relink to the Blackmagic RAW files and wrap it up. It’s a sensible approach built for teams that need to deliver while production is still rolling.

The verdict

The PYXIS 12K in L-mount is the right kind of simple. It gives you a big sensor, a tough little body and a workflow that respects time. It asks for some planning — ND in front, batteries that match your day, storage to spare — but pays you back all the way through post. The image has weight. The color bends without breaking. The menus keep out of your way.

There are critiques, sure. No internal ND. No continuous AF. A fixed screen. A single SDI and no HDMI. You’ll notice the fans in a very quiet room. None of these are fatal, but worth considering if you’re thinking about getting the PYXIS 12K

If you need oversampling that actually matters, like to set focus and keep it there, and want a camera that plays well with others without the drama, the PYXIS 12K is an easy yes. It’s a tool built for serious work. It’s a box that loves detail. And it makes you look good when the lights go up and the deadline is close.
