Why the Pros Use Double-System Sound

Professional video producers will be the first to tell you that high-quality sound is just as critical as image quality. However, capturing well-timed, broadcast-quality audio directly into a camera remains a significant challenge. Despite major advancements in camera technology, audio capture is rarely the priority. That’s where double-system sound comes in. Employing this style of workflow separates the recording of audio and video, offering more flexibility and often better quality. It’s the industry standard for narrative films, documentaries, interviews, and any production where clean, high-fidelity audio is critical.

What Is Double-System Sound?

Double-system sound refers to video capture and audio recording on two separate devices:

• Video is captured by the camera, often with a basic reference audio track.

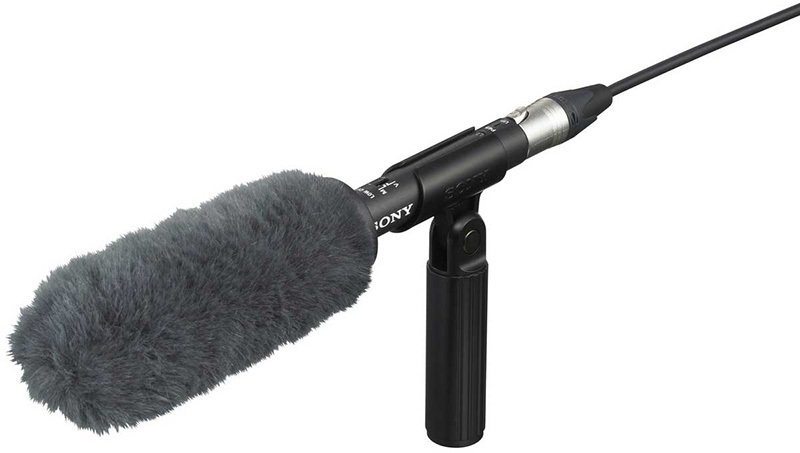

• Audio is recorded on an external field recorder, handled by a sound mixer or audio technician. Simple productions may only have a sound mixer with a shotgun microphone attached to a boom arm.

Later, the two are synced in post-production, either manually or using timecode systems.

This is the opposite of single-system sound, where the microphone is plugged directly into the camera and both audio and video are captured together. While single-system setups are faster and easier for some types of shooting (like news or run-and-gun videography), they don’t offer the same control or audio fidelity.

Why Use a Double-System Workflow?

1. More Mics, More Tracks
   If you’re limited to recording audio directly into the camera, you’ll likely be restricted to just two channels. By separating the audio from the camera, however, you can use as many microphones as needed and even record each mic on its own dedicated track. In addition, when audio isn’t tethered to a camera, sound mixers can place microphones closer to the subject – on handheld boompoles or lavalier mics – without worrying about cable runs to the camera.
2. Superior Audio QualityExternal recorders typically have better preamps, higher-quality analog-to-digital converters, and support for more professional audio formats. This results in cleaner, more detailed sound.
3. Advanced Audio Mixing
   A dedicated sound mixer can balance levels, apply limiting, and manage multiple sources (like lavaliers, booms, and ambient mics) in real-time, capturing isolated tracks for later fine-tuning.
4. Redundancy and Backup
   Recording audio separately adds an important layer of redundancy. If the camera’s onboard audio is misconfigured or fails altogether, you’ll still have a clean, usable backup. It’s not unusual to return from a shoot only to discover that the camera audio is distorted by hiss, buzz, or is completely unintelligible. Having someone dedicated to only capturing audio allows them to monitor in real time and avoids these common pitfalls.

How Double-System Sound Works on Set

Here’s a basic overview of how the process plays out during production:

1. Equipment Setup

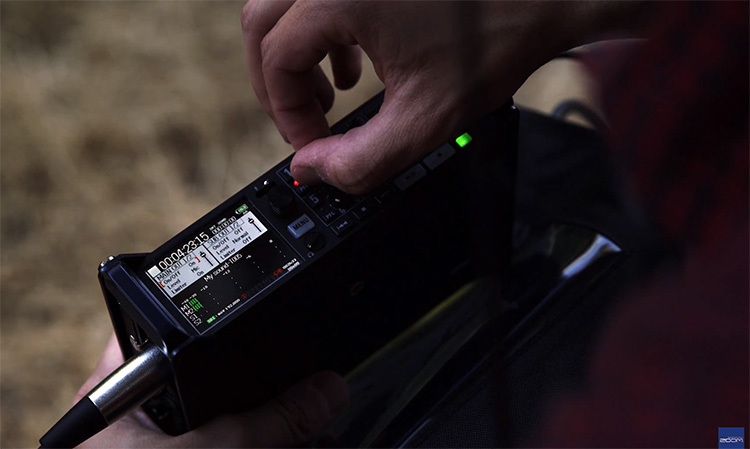

   The audio team typically uses a field mixer-recorder, such as a Zoom F8n. Microphones (wired or wireless) connect to the recorder, where levels are monitored and adjusted. An important footnote: There are many compact audio mixers on the market. Two key elements here are making sure you choose a model that both records and is battery powered. The camera might get a scratch (reference) track – either via a direct line from the mixer or from its onboard mic. This audio doesn’t need to be perfect; it just helps with syncing later.
2. Syncing Methods
   There are a few ways to sync the audio and video later:

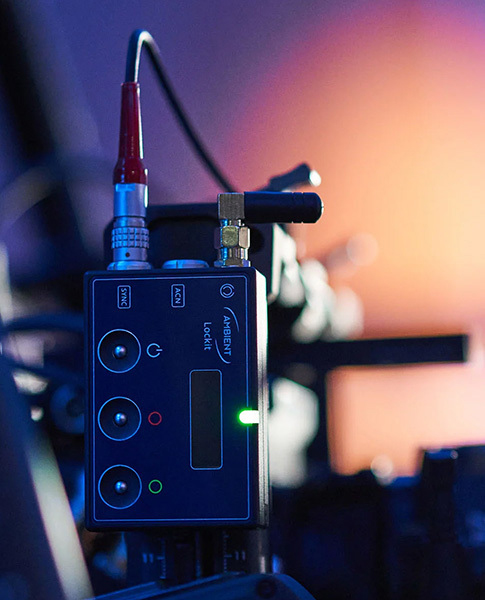

• Timecode Sync: Professional setups often use timecode generators – such as the Tentacle Sync or Ambient Lockit boxes – to jam-sync both camera and recorder. This embeds matching timestamps in both files, allowing for automatic sync in post production.

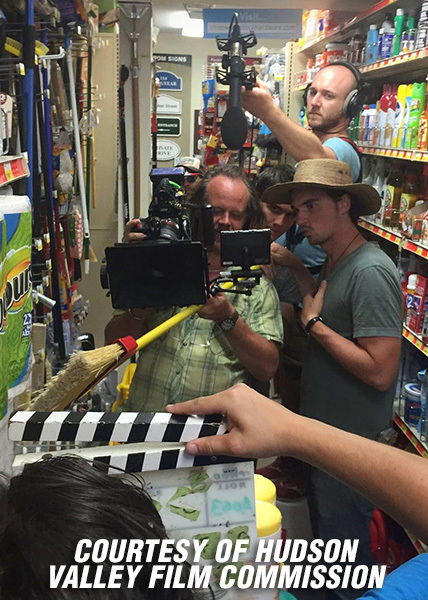

• Clap Slate or Hand Clap: In simpler setups, a visual and audible clap (with a slate or hand) is captured at the start of each take. Editors use the peak in the waveform and the visual clap to align the files.
• Waveform Syncing in Software: Most modern editing software (like Adobe Premiere Pro, Final Cut Pro, and DaVinci Resolve) can analyze waveforms from both sources and align them automatically.

Best Practices for a Smooth Workflow

• Label Everything Clearly
  Use consistent naming for audio and video files or clips. Include the scene and take numbers on slates and in file names whenever possible.
• Monitor Audio Independently
  Don’t rely on what’s feeding the camera. The sound mixer should always monitor with headphones directly from the recorder.
• Use a Clap Slate on Every Take (Even with Timecode)
  It provides a fallback in case timecode fails and helps in visually identifying takes.
• Record Reference Audio to Camera When Possible
  Even poor-quality scratch audio can speed up syncing and prevent confusion in post.

Challenges and Trade-offs

Double-system sound does introduce complexity as it will require:

• More equipment and crew (a sound mixer/recordist),
• More setup and coordination on set, and
• Additional time in post to sync and manage files.

However, the trade-off is vastly improved sound, which translates to higher production value and a better experience for the audience.

Conclusion

Whether you’re shooting a short film, corporate interview, or a feature-length documentary, double-system sound is a professional standard for a reason. It allows you to capture clean, controlled, and flexible audio independently of the camera. While it adds a layer of complexity to the production process, the clarity and quality of the final result make it well worth the effort. Great visuals may draw your audience in – but great sound keeps your audience engaged. As with any high-quality production, it will require some additional investment. Contact our audio experts today and we will be happy to guide you through the right equipment at the right price!
